Overview
Quick Details
- Warranty:
- 3years, 10 Years
- Application:
- Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems, Solar power system
- Battery Size:
- 48V
- Brand Name:
- Vmaxpower
- Certification:
- CE
- Model Number:
- M-LFP48V 50AH
- Place of Origin:
- Chian
- Weight:
- 31KGS
- Product name:
- Vmaxpower lithium battery48V 50Ah
- Certificate:
- CE ISO9001
- Working Appliance:
- Air-Conditioners,refrigerators,water pumps,TV,Light ,Fans and others
- Display:
- LED LCD Digital Display
- Battery type:
- LiFePO4, Li-Ion
- Protection Level:
- IP20

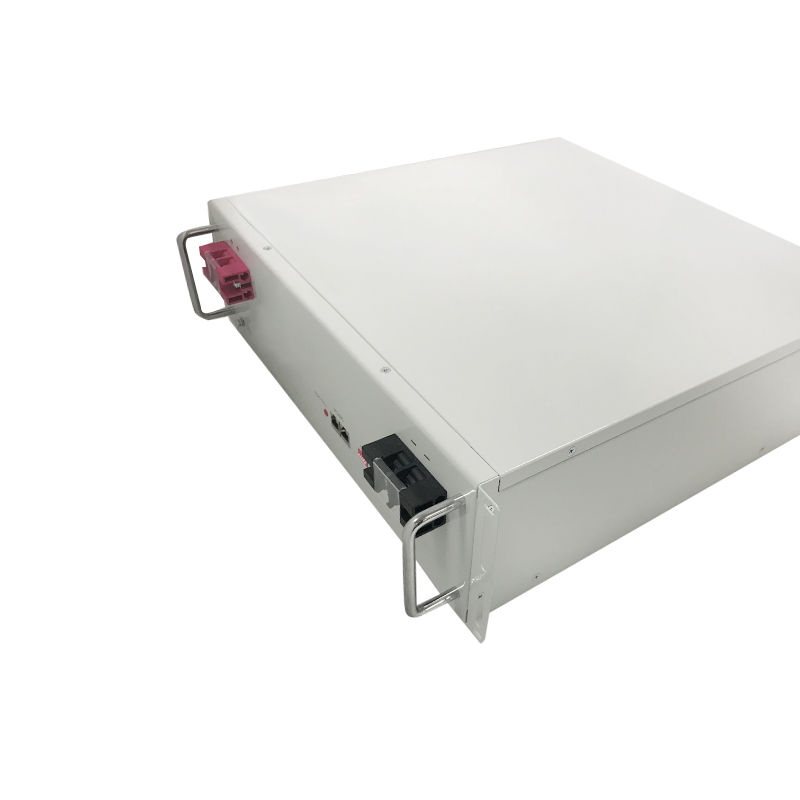

Product Description 48V 50Ah Lithium Battery
lithium iron phosphate battery pack for solar energy storage system. The battery pack is managed by the BMS in series and then protects the battery from overcharging, over discharging, overcurrent short circuit, over temperature, etc.; and the monomer equalization function is added to ensure the consistency of the battery during use; Through the communication function, the parameters such as battery voltage and remaining capacity can be monitored in real time; the control function can be added according to customer requirements to meet the product requirements of customers. At the same time, the single battery adopts the advanced battery production process, which has the characteristics of good consistency, high specific energy and long life, safety and reliability, and wide temperature range.
Package & Shipping
Batteries have high requirements for transportation. For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009
Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
Each module is equipped with an independent BMS system.Safe lithium iron phosphate battery cellStandard design with helpful pulling ear Quick stacking6000 cycles, 20 years design lifeCompact size and light weightTUV CE IE62619 IEC 62040 UN38.3 CEC♦Temperature protection ♦Short circuit protection ♦Reverse connection protection ♦RS485 communication ♦Dry contact ♦Remote monitoring function♦Battery pack over-voltage protection ♦Battery over voltage protection ♦Over current protection ♦Battery pack under-voltage protection ♦Battery under-voltage protection ♦Discharge over-current protection | Nominal charateristic | |
| NominalVoltage/V | 48 |
| NominalCapacity/Ah(35℃,0.2C) | ≥50 |
| Mechanical characteristic | |
| Weight(approximate)/kg | 31±0.3 |
| Dimension L*W*H/MM | 442*440*135 |
| Terminal | M6 |
| Electrical characteristic | |
| Voltage window/V | 42 to 54 |
| Flot charge voltage/V | 51.8 |
| Max. continue charge current/A | 50 |
| Max. continue discharge current/A | 50 |
| Max. Pulse discharge current/A | 55A for 30s |
| Discharging Cut-off voltage/V | 42 |
| Operating conditions | |
| Cycle life(+35℃ 0.2C 80%DOD) | ＞4500 Cycles |
| Operating temperature | Discharge -20℃ to 60℃ Charge 0℃ to 60℃ |
| Storage temperature | 0 to 30℃ |
| Storage duration | 12 months at 25℃ |
| Safety standard | UN38.3,GB-EMC |
| M-LFP48V 50Ah | ||||
| Discharge constant current(Amperes at 77° F,35℃) | ||||
| Eon Point Volts/Cell | 0.1C | 0.2C | 0.5C | 1C |
| Time | Hours | |||
| 46.5 | 10.50 | 5.21 | 2.03 | 0.91 |
| 45.0 | 10.73 | 5.33 | 2.08 | 1.03 |
| 43.5 | 10.88 | 5.41 | 2.15 | 1.06 |
| 42.0 | 10.96 | 5.46 | 2.17 | 1.08 |
